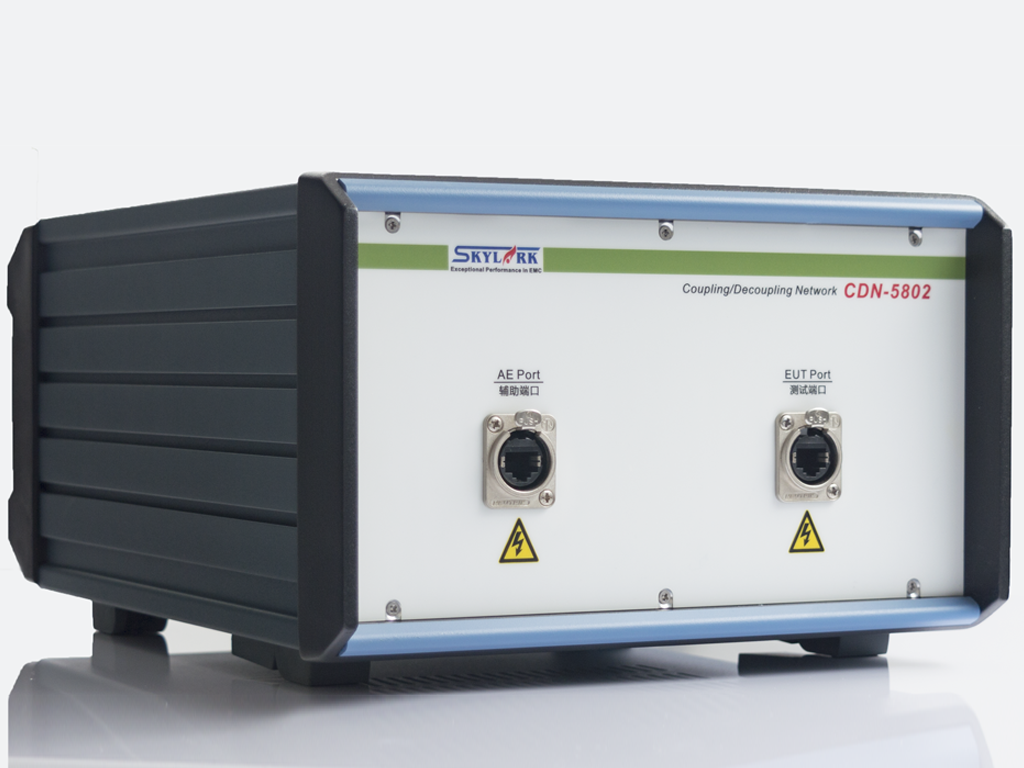

Technical parameters
1, applicable range: ≤4kV, 10/700us waveform, 8 lines of unshielded symmetrical communication lines
2, test voltage: up to 4kV (10/700us waveform, connected to RJ45 connector, not connected to RJ45 connector, the maximum test voltage is 1.5kV)
3, coupling mode: 90V gas discharge tube s 250ohm resistance / per line, 8 lines at the same time - ground (common mode)
4, input, output interface: RJ45 female head
5, terminal layout (RJ45 connector):
First pair: pins1/2
Second pair: pins3/6
Third pair: pins4/5
Fourth pair: pins7/8
6, data transfer rate: 100MBit/s (up to 1000M)
7, network operating voltage: up to 50V DC
8, network operating current: up to 1A
