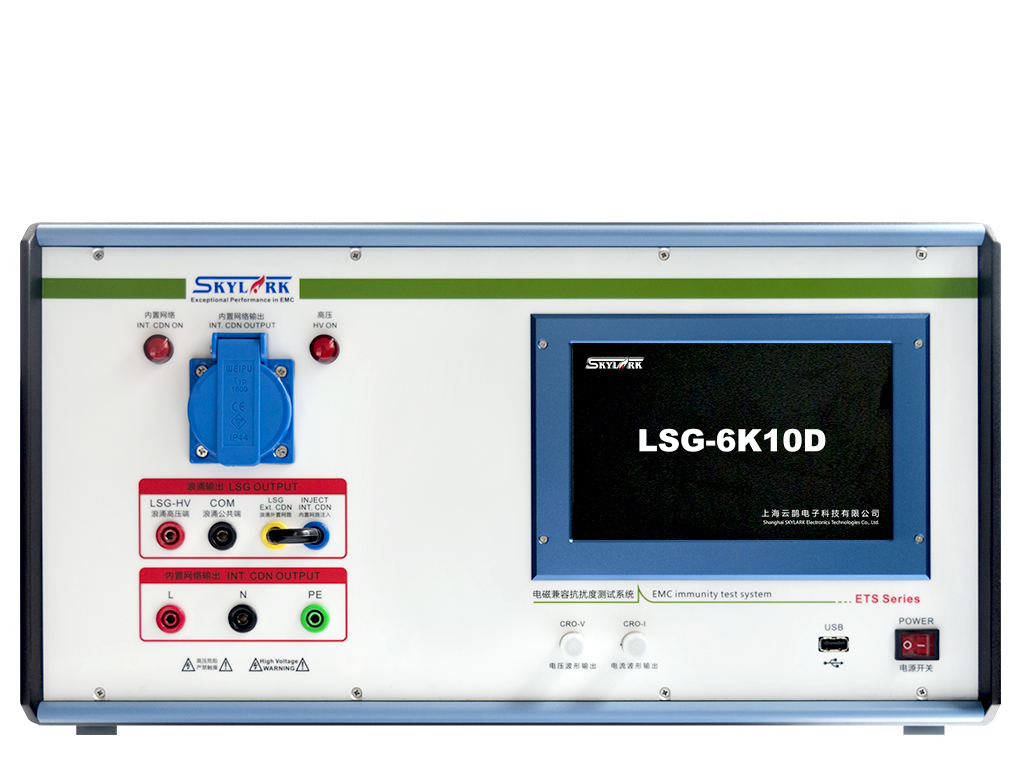

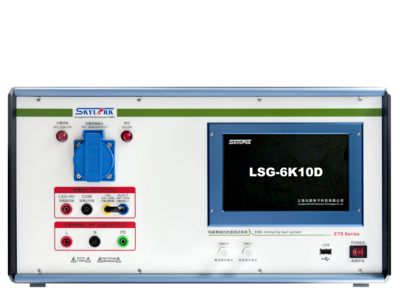

product description
Due to the transient phenomenon generated when the power supply and the control switch are switched (or caused by lightning strikes), ringing wave interference is generated on the power line, control line and signal line. The disturbance performance evaluation establishes a common criterion. The intelligent ring wave simulator meets the latest requirements of GB/T17626.12\IEC61000-4-12 and ANSI C62.41/45.
The fully automatic lightning surge generator is used to evaluate the performance of equipment power lines and internal connecting lines when they are subjected to high-energy transient interference caused by switching and natural lightning strikes to provide a common basis.
standard
IEC61000-4-12 GB/T17626.12, ANSI C62.41/45, IEC61000-4-5 and GB/T17626.5
Built-in EUT working voltage and current monitoring, overvoltage and overcurrent protection
Intelligent programmable high-voltage power supply, built-in high-voltage over-voltage, over-current, and short-circuit protection
Surge output intelligent detection, voltage error, no output warning
With self-diagnosis function, intelligently judge high voltage and surge output abnormalities
◆Product Standard
GB/T17626.12
IEC61000-4-12
ANSI C62.41/ 45
GB 18802.1
IEC/EN 61000-4-5
IEC/EN 61850-3
ITU-T K.12
ITU-T K.20
ITU-T K.45
UL1449
